DTMF Encoder Projects
Performed Work
- Electronic Project Yes
- Hardware Design No
- Schematics Yes
- PCB Layout No
- Firmware Yes
- Programming Software Yes
- In Charge of Production No
- Company Pipo Communications
- Year 2015 (ANI-6.5), 1995 (ANI-4.0)
Description

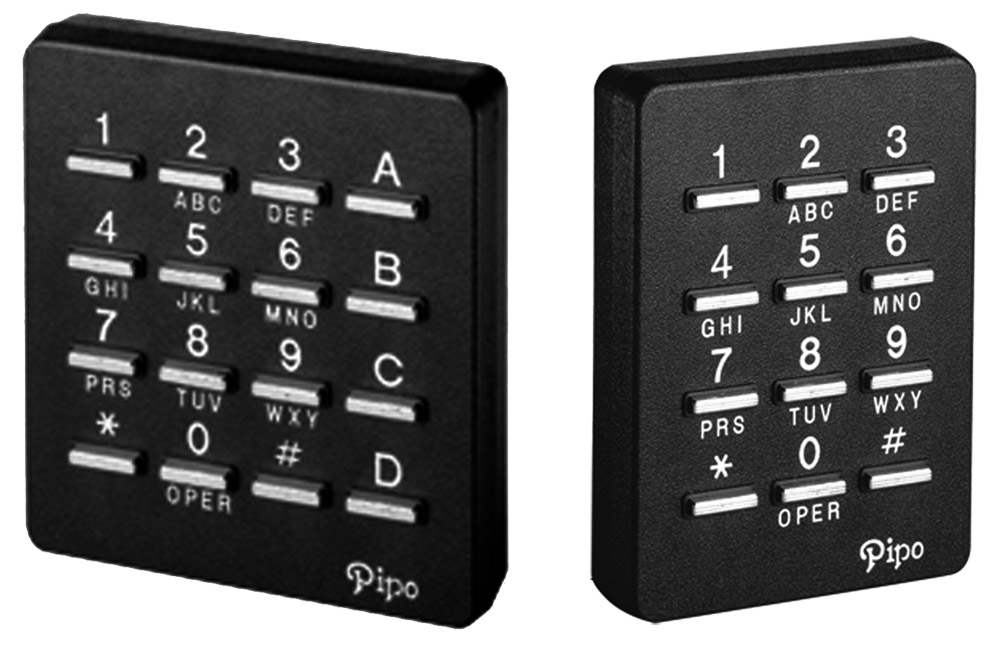

Two generations of DTMF encoders were designed for Pipo Communications.

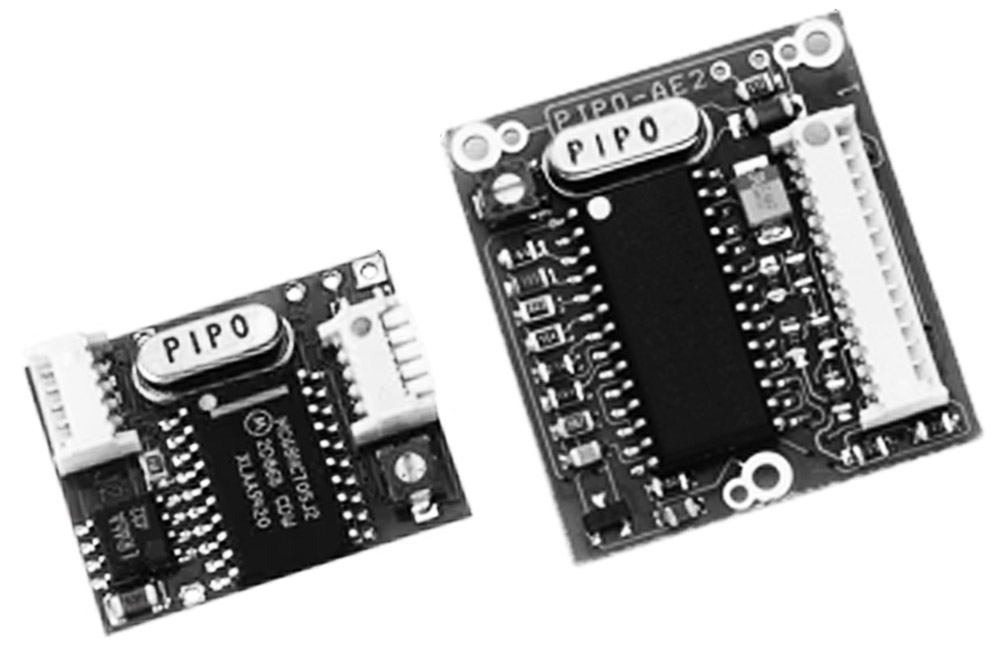

In 1995, the ANI-4.0 version was designed using Motorola HC05 microcontrollers with firmware written in Assembly language.

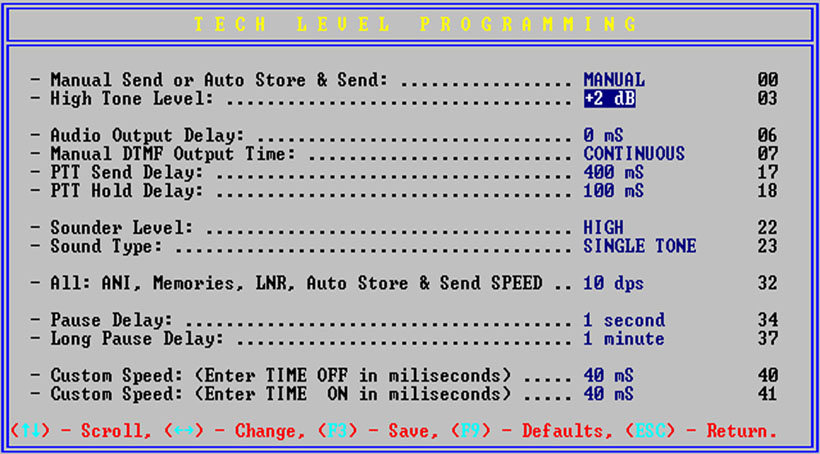

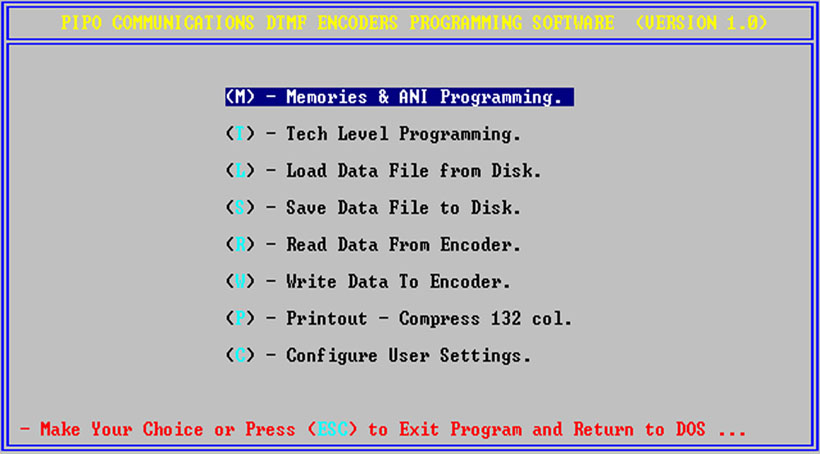

The first PC programmer software was written in 1995 using C++ for DOS.

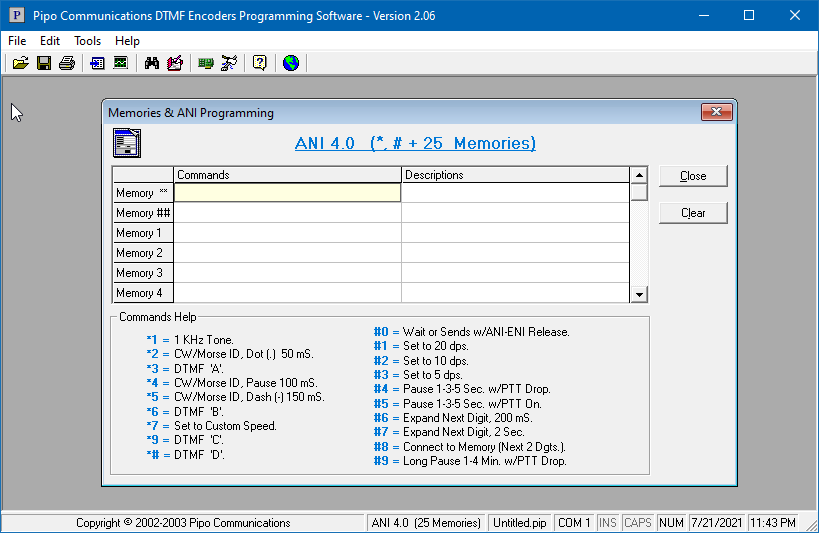

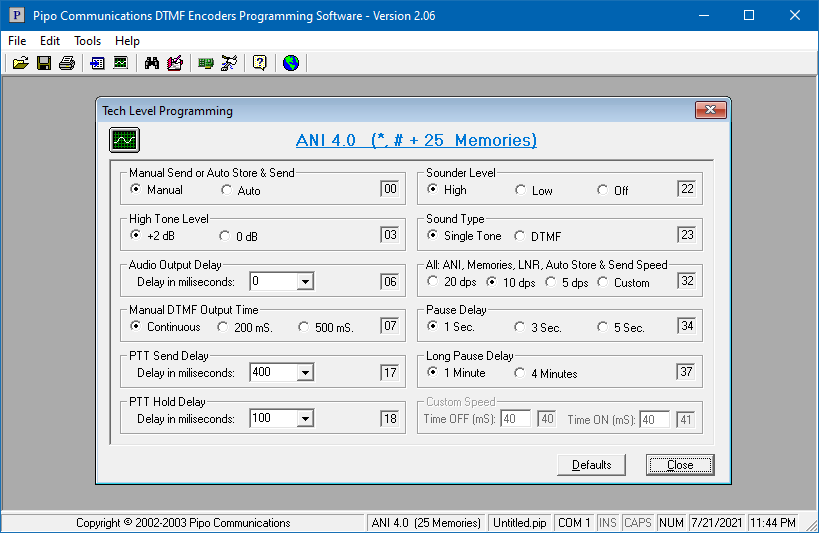

In 2002 the ANI-4.0 PC programmer software was rewritten for Windows XP.
Twenty years later, in 2015, providing many more features, the ANI-6.5 version was designed using Microchip's mid-range MCU and firmware written in C language.

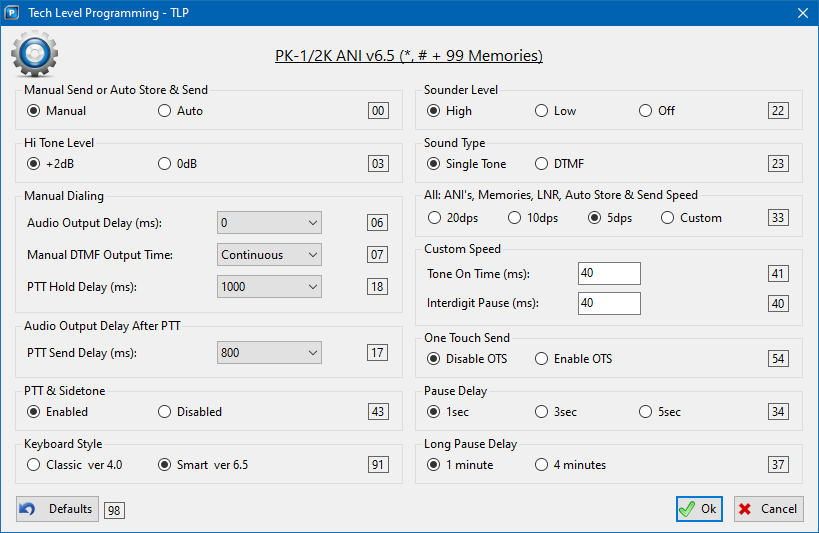

The ANI-6.5 PC programmer software was written for Windows 7 or later.
